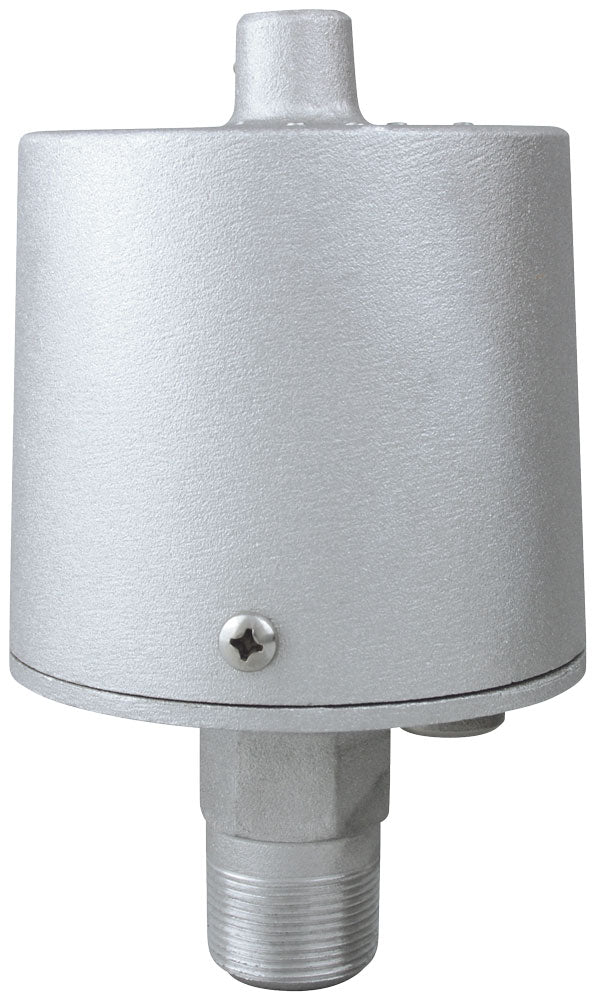

IH-2 Series Internal Halyard Revolving Trucks

Revolving, single pulley truck for cable style internal halyard poles.  1 1/4" NPT spindle threading screws into the top of the flagpole with female fitting.  Stainless steel bushing at the cable exit point, except for the IHT-3, which has a bronze fitting.  IHT-3 utilizes stainless steel sealed lubricant bearing assemblies, all other sizes have enclosed stainless steel bearings and raceway for movement.

All sizes accept ornaments with a spindle threading of 1/2"-13NC.

Available in Silver, Bronze, White and Black.

IHT-VR

• Maximum pole diameter of 3"
• Truck base diameter of 5"
• Truck Height: 4 1/2"

IHT-1

• Maximum pole diameter of 4"
• Truck base diameter of 6 1/2"
• Truck Height: 6 1/2"

IHT-2

• Maximum pole diameter of 5"
• Truck base diameter of 7 1/2"
• Truck Height: 7 1/4"

IHT-3

• Maximum pole diameter of 7 1/2"
• Truck base diameter of 10 1/2"
• Truck Height: 8 1/2"
